GM Patents Inline-Six With Altered Piston Motion and Added Complexity

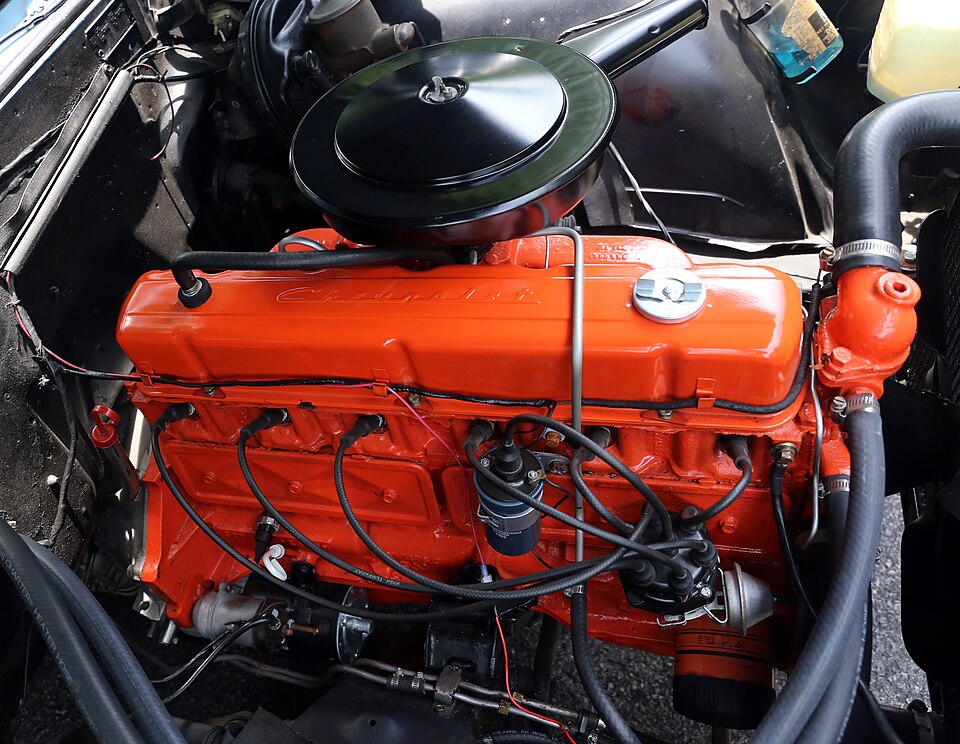

In a conventional piston engine, each connecting rod provides a direct mechanical bridge between its piston and the crankshaft. A recently published General Motors patent proposes a more elaborate path: gears, links and control components would change that relationship, altering how the pistons move through their strokes in an inline-six engine.

The patent, titled “Extended Expansion Engine With Variable Compression Ratio for Longitudinal Mounting Applications,” was filed last year and published last week. Its mechanism is intended to vary the engine’s compression ratio while also extending the expansion of combustion gases. Those two functions could improve gasoline-engine efficiency under suitable conditions, but GM has published no measured fuel-economy, power, durability or emissions results.

Changing the piston’s relationship with the crankshaft

Compression ratio describes the difference between the cylinder’s largest volume and its smallest volume. Raising that ratio can improve efficiency because the engine compresses the air-fuel charge more tightly before combustion. The practical limit changes with operating conditions, however. A ratio suitable for relatively light loads may be undesirable under heavier loads, when abnormal combustion can become a concern.

GM’s proposed hardware would give the engine another degree of mechanical control. Rather than leaving piston travel fixed entirely by the dimensions and geometry of a traditional connecting rod and crankshaft, the added linkage could alter the piston’s movement and change how much the mixture is compressed. The engine could therefore use different effective compression behavior as its operating conditions change.

The extended-expansion part of the concept addresses what happens after combustion. Hot gases push the piston downward and turn the crankshaft, but they can retain useful pressure and thermal energy when the exhaust process begins. Allowing those gases to expand farther can extract additional work before they leave the cylinder. The intended benefit is a better return from the fuel already burned, rather than merely adding more fuel or increasing engine displacement.

These principles are established, even though GM’s specific implementation remains an unproven patent concept. Nissan’s production variable-compression engine, for example, uses a multi-link system and an actuator to change how far its pistons reach. That comparison shows that variable compression can move beyond a drawing, but it does not establish that GM’s inline-six would deliver the same operating range, packaging characteristics or results.

Efficiency must overcome mechanical losses

The central engineering tension is that a mechanism intended to save fuel also consumes energy. Every additional bearing, gear interface and moving link can introduce friction. Extra parts also bring mass, lubrication requirements, manufacturing tolerances and more interfaces whose wear must be controlled over an engine’s service life.

A 2021 simulation study of an engine combining variable displacement and variable compression found an efficiency improvement of approximately 15% under partial-load conditions compared with a conventional fixed-compression engine. That result applied to the modeled engine and its calibration, not GM’s arrangement. It illustrates why automakers continue studying these mechanisms, while also showing why GM would need its own hardware testing and vehicle-level data before assigning a benefit to this design.

Control integration would be another major task. The mechanism would need to select suitable geometry as engine speed and load change, while working with ignition timing, fueling, airflow and any forced-induction system. The commanded position and the hardware’s actual position would also need to remain predictable across temperature, wear and transient operation. A thermodynamic gain at one operating point would have limited value if the mechanism imposed excessive friction or control penalties elsewhere.

Cost and packaging could be equally decisive. The patent addresses longitudinal mounting, an orientation commonly found in rear wheel drive vehicles and many trucks and SUVs. That makes the concept relevant to some GM architectures, but it is not a vehicle assignment. An inline-six is already a relatively long engine, and its additional linkage and control hardware would have to fit alongside the lubrication, cooling, exhaust and accessory systems required in a production installation.

A patent protects an engineering idea; it does not commit an automaker to manufacture it. GM has not identified a vehicle, announced a production program or released efficiency estimates for this arrangement. The next meaningful milestone would therefore be measured prototype data showing that the longer expansion and variable compression recover more energy than the added gears and links lose through friction, cost and complexity.
